|Unit Price:||USD 10.0000 - 500.0000 / Piece/Pieces |
|Payment Type:||L/C,T/T,Western Union|
|Min. Order:||1 Piece/Pieces|
|Delivery Time:||15-30 Days|
Model No.: TR-J254
Packaging: Standard Exporting Package for Aluminum condenser tube for vehicle
Productivity: 100000pcs per month
Place of Origin: China
Supply Ability: 1200000pcs per year
Certificate: ISO 9001
HS Code: 7608
Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, core material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum radiator tube for vehicle, aluminum pipe, aluminum tube, flat aluminum micro channel tube etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
2) 3000 series: 3003 etc
|No.||Alloy||Temper||Tensile Strength(Mpa)||Yield Strength(Mpa)||Elogation(%)|
|1||1050||O/F/H111/H112||≥ 65||≥ 20||≥ 25|
|2||1100||O/F/H111/H112||≥ 75||≥ 20||≥ 25|
|3||1197||O/F/H111/H112||≥ 80||≥ 25||≥ 20|
|4||3102||O/F/H111/H112||≥ 75||≥ 20||≥ 25|
|5||3R03||O/F/H111/H112||≥ 80||≥ 25||≥ 20|
|1||1050||≤ 0.25||≤ 0.40||≤ 0.05||≤ 0.05||≤ 0.05||-||≤ 0.05||≤ 0.05||≤ 0.03|
|2||1100||≤ 0.95(Fe+Si)||0.05-0.20||≤ 0.05||-||-||≤ 0.10||-||-|
|3||1197||≤ 0.15||≤ 0.20||0.40-0.55||0.10-0.20||≤ 0.03||≤ 0.05||≤ 0.05||≤ 0.05||≤ 0.05|
|4||3102||≤ 0.40||≤ 0.70||≤ 0.10||0.05-0.40||-||-||≤ 0.30||-||≤ 0.10|
|5||3R03||≤ 0.15||≤ 0.15||≤ 0.01||0.90-1.10||≤ 0.03||≤ 0.03||≤ 0.05||≤ 0.05||≤ 0.05|
6. Size Tolerance
|Width||Thickness||Wall Thickness||Length||Lateral Curvature||Frontal Curvature||Twsiting Dgree|
|± 0.05mm||± 0.03mm||± 0.05mm||± 0.03mm||≤ L× 0.2%||≤ L× 0.25%||≤ L× 0.15%|
7.Our products will be tested in strict standard before delivery, some data for your reference.
|No||Products' Testing Name||Contents and requests|
|1||Corrosion Resistance||Salt spray test: ≥ 750 hours|
|2||Zn Coating Standards||6/8/10/13± 2g/square meter|
|3||Flux Cotaing Standards||10-15± 2g/square meter|
|Minimum Order Quantity:||100pcs， less quantity can negotiate|
|Payment Terms:||T/T or LC|
|Supply Ability:||1000,000 pcs per year|
|Delivery Time:||15-30 working days after received your down payment|
|Packaging Details:||Standard export packaging|
Multi port micro channel heat exchanger aluminum tubing is widely used for manufacturing of various kinds of heat exchangers:
Charge air coolers/intercoolers
Engine oil coolers/transmission oil coolers

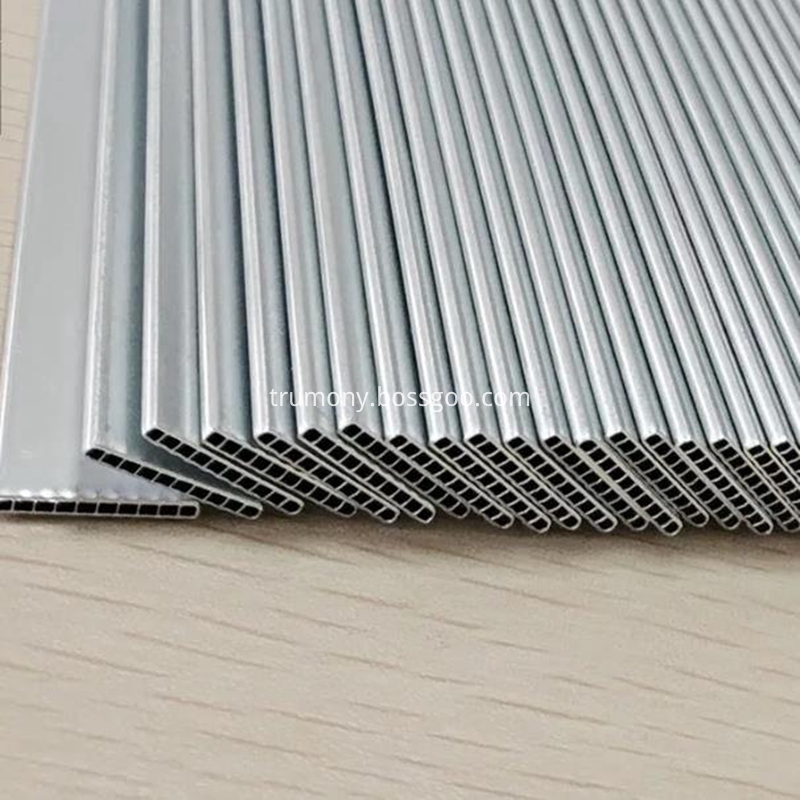

Micro channel aluminum flat tube (also called "parallel flow aluminum flat tube") is a kind of is made of refined aluminum rods, by hot extrusion, after spraying zinc surface anti-corrosion treatment, porous sector thin-walled tubular material, mainly used in various kinds of cooling air conditioning system, as a carrier of new environmental protection refrigerant piping components, adopt new environmental protection system is a new generation of microchannel parallel flow the key materials of air conditioning heat exchanger.Our advantage:
1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time 15-30 days for flat aluminum micro channel tube;
8. Good communication skills, and good after sells service, and understandings for customers;
1, Q: Are you manufacturer of 3003 Multi port micro channel aluminum pipe prices?
A: Yes, we are established in 2006. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcome. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.
5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
About sample shippment,you need to pay for the freight,usually freight collect by express.
6. Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
5~15 days if no stocked sample and the sample structure is not complex;
15~30 days if no stocked sample and the sample is with complex structure.
