Heat Sink MPE Channel Multiport Tube

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 2 Ton
Delivery Time: 45 Days

Basic Info

Model No.: TRU-HE1160

Additional Info

Packaging: export shipment package

Productivity: 100000Ton per Year

Brand: Trumony

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 100000Ton per Year

Certificate: TS16949,CE,ISO,RoHS,UL

HS Code: 7604

Port: Shanghai

Product Description

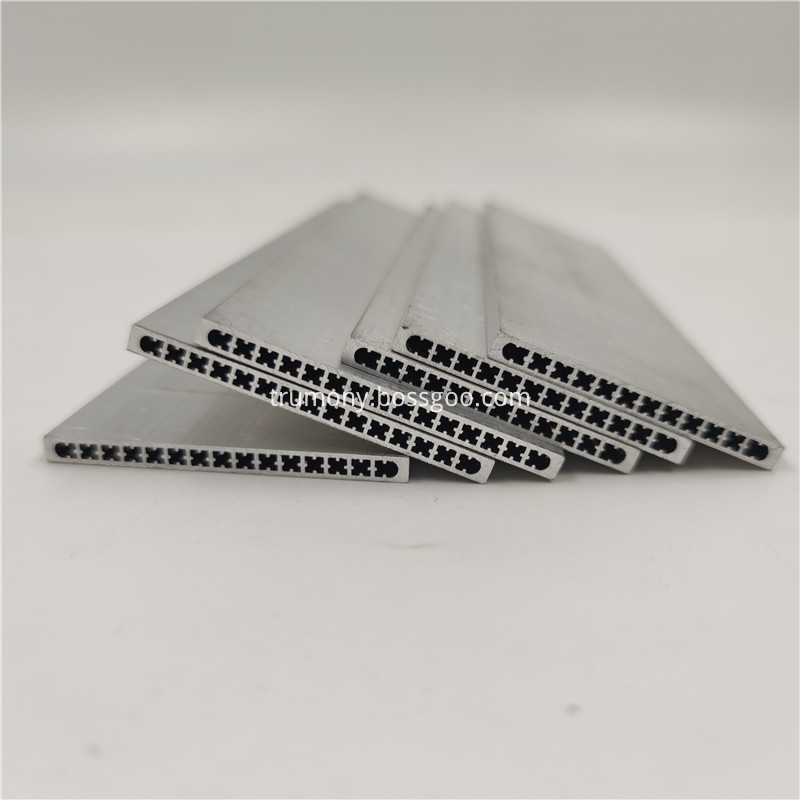

Micro-channel flat aluminum pipe with their large internal surface area, yield more efficient heat transfer and are therefore ideal for use in highly effective heat exchangers.Beside increased global performances, an all-aluminum brazed heat exchanger using Micro Multi Port Extrusion (MPE) will also present better corrosion resistance. Micro Multi Port Extrusion (MPE) are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater coresThe Micro Multi Port Extrusion (MPE) was equipped in environment-friendly auto air-conditioning systems
Which use R134A as the refrigerant in European Union and China successively in
The year of 1996 and 2002. With a development of more than ten years, it has
Become a mature technology.The Micro Multi Port Extrusion (MPE) is a highly refined quality product and is charac-terised by the following properties:
-Low weight
-Excellent conductor of heat and electricity
-High corrosion resistance
-High recycling value
-High surface quality
-High pressure resistance.Aluminum galvanized Micro Multi Port Extrusion (MPE) is the main component part
Of air-conditionings and the parallel flow evaporators and condensers of other
Refrigeration equipments.The micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
Low energy costs
High performance
Low space and weight
High corrosion and pressure resistance
High recycling value
Pressure drop and silent solution
Low refrigerant fillProduct Description:
Aluminum flat tube is an important spare part for auto radiators. Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.

Mechanical property
Alloy Code Temper Tensile Strength Rm(Mpa) Yield Strength(Mpa) Elongation(%)
TR-010,TR-020,TR-030,TR-040TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3
H16 185-225 160 ≥1
H18 ≥185 -- ≥0.5
TR-166Etc. Tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8

OD OD Tolerance ID Tolerance Roundness straightness Circular   run-out
φ16-20 ±0.02 ±0.02 0.01↓ 0.015↓ 0.05↓
φ20-30 ±0.02 ±0.02 0.01↓ 0.015↓ 0.05↓
φ30-50 ±0.05 ±0.05 0.02↓ 0.020↓ 0.08↓
φ50-80 ±0.15 ±0.10 0.05↓ 0.025↓ 0.10↓

Mechanical Properties
No Alloy Temper Tensile
strength
Yield
strength
Elongation
1 1050 O/F/H111/H112 ≥ 65 ≥ 20 ≥ 25
2 1100 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
3 1197 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20
4 3102 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
5 3R03 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20

Aluminum Tube
