3102 Wide Aluminum Tube Extrusion For CAC

Unit Price: USD 50.0000 - 500.0000 / Piece/Pieces
Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Piece/Pieces
Delivery Time: 35 Days

Basic Info

Model No.: Tr

Additional Info

Packaging: ply-wood box specialized for export

Productivity: 100000pcs per month

Brand: Trumony

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 1000000pcs per Year

Certificate: TS16949,ISO

HS Code: 7608

Port: Shanghai

Product Description

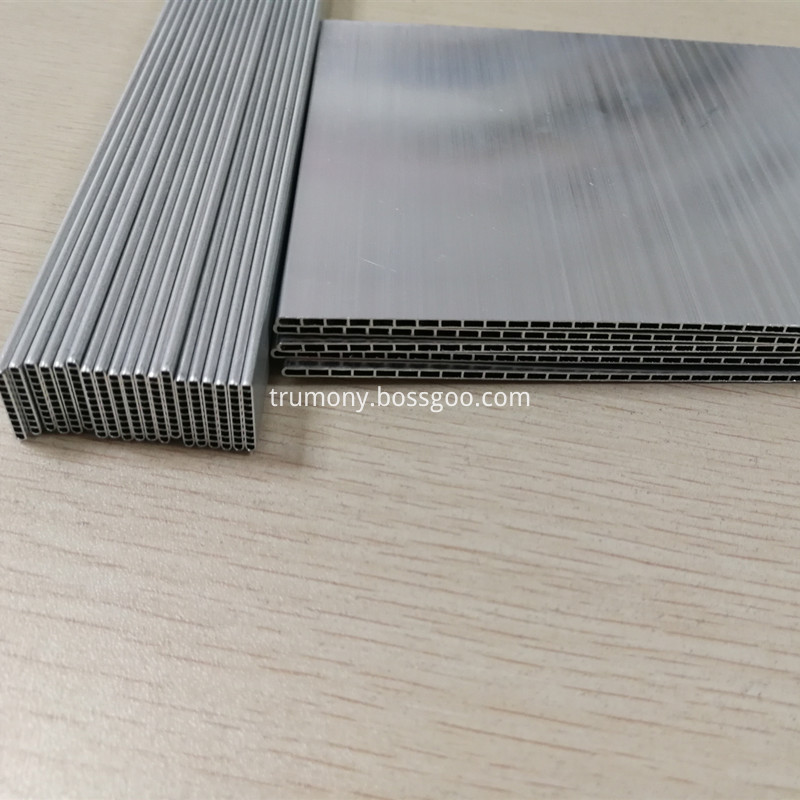

3102 Wide Aluminum Tube Extrusion For CAC


We are supplying the micro-channel aluminum tube and also the wide extruded aluminum tube for automobile heat exchangers.The tube width can be more than 100mm.



Product Description:

Aluminum flat tube is an important spare part for auto radiators. Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.


Multiport Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:

1. Lower energy costs
2. Higher performance
3. Less space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution


Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Condensers
Evaporators

Oil coolers

Radiators
Heater cores


Multiport Extruded Aluminum Tube are available in various sizes and alloys, ensuring the best properties for the purpose required.


Dimensions: Designed to customer specification


Package: coils or Straight with fixed length


Surface Treatment : Zinc spray / without Zinc spray


No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05


Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%



Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, 6101 T63 High Conductivity Aluminum Conduction Plates, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.




aluminum tube extrusion


Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, 3003 aluminum water cooling sheet for heat exchanger, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, inter cooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine.
