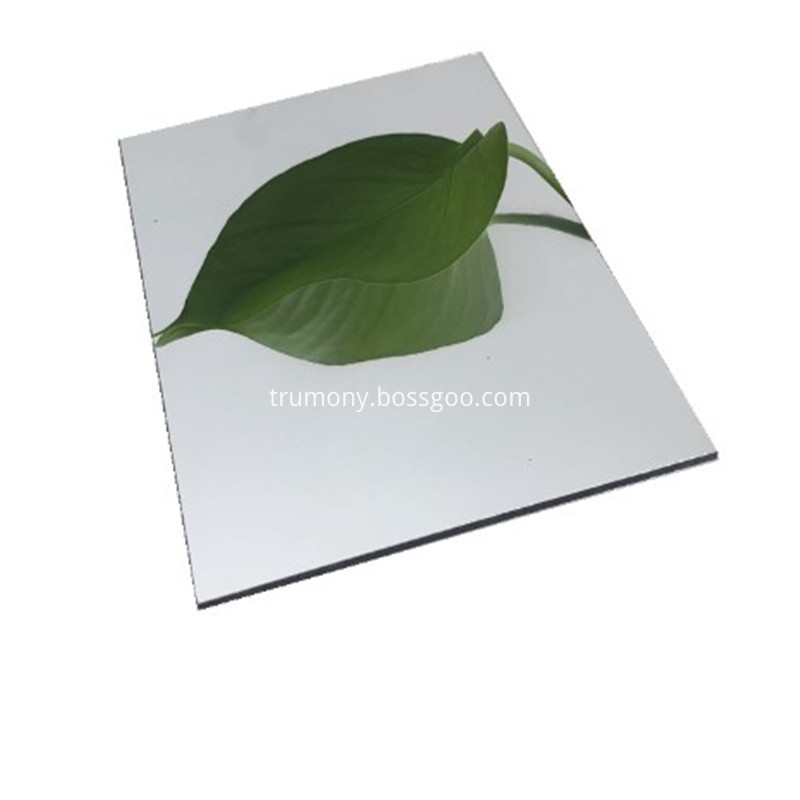

ACP Silver Aluminum mirror composite plate

Unit Price: USD 2600.0000 / Metric Ton
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 5 Metric Ton
Delivery Time: 25 Days

Basic Info

Model No.: TR-J021

Material: 1000 Series, 2000 Series, 3000 Series, 4000 Series, 5000 Series, 6000 Series, 7000 Series

annealing: O-H112, T3-T8

species: Plate

Surface treatment: Coated

Whether alloy: Is Alloy

place of origin: China

tolerance: ±1%, ±5%

Processing Service: Bending, Decoiling, Welding, Punching, Cutting

Additional Info

Packaging: Standard export package

Productivity: 100000tons per month

Brand: Trumony

Transportation: Ocean,Land,Air,Train

Place of Origin: China

Supply Ability: 1200000tons per year

Certificate: ISO 9001

HS Code: 7606

Port: Shanghai

Product Description

Product Name: 3003 6063 6061 1050 5250 8011 Silver Aluminum mirror composite plate for Decoration


Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.


Trumony belief: True and Hamony


Mechanical property:

Alloy code Temper Tensile Strength Rm(Mpa) Yield Strength Rp0.2(Mpa) Elongation

TR010,TR020,TR030,TR040,TR050,TR110,TR310,

TR116,TR316,TR111,

TR313,TR121,TR131,

TR141,TR150,TR151,TR156 etc

O 95~135* ≥35* ≥15*
H14 140~185 ≥125 ≥1.5
H24 140~185 ≥125 ≥3
H16 185~225 ≥160 ≥1
H18 ≥185 - ≥0.5
TR166 etc tube material H24 185~235 ≥150 ≥8
TR116,TR316 etc tube material H14 140~185 ≥125 ≥3
  H24 140~185 ≥125 ≥8

Width
1000mm,1220mm, 1250mm,1500mm,1550mm, 1570mm / As per order
Length
2440mm, 3200mm, 4000mm, 5000mm, 6000mm/ As per order
Total Thickness
2mm, 3mm, 4mm, 5mm, 6mm etc
Aluminum Skin Thickness
0.21mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.5mm / As per order
Inner Core
Nontoxic PE core, Half unbreakable, Unbreakable, Virgin LDPE, FR Core
Color & Finish
Solid color, Metallic color, Brush color, Mirror, Marble, Wooden color, Glossy
Coatings
PE, PVDF, NANO, Anti-scratch, Fireproof
Coating  Hardness
3H
Impact Resistance
No peeling or cracking(50 kg/cm,ASTMD-2794:1993)
MEK Resistance
More than 100
Adhesion Grade
Grade 0
Colors
RAL colors or custom-made
OEM & ODM
Acceptable



Features and Advantages of Aluminum mirror composite panel:

Aluminum Composite Panel is composed of multi-layer composite materials. The above and below layers are high purity aluminum alloy sheets, between which is non-toxic low density PE core board, and with protective layer on the above shape. Normally KYNAR500 PVDF adopted for the surface coating for outdoor and PE coated for indoor.


Application of Anodized Aluminum Sheet :

Anodized aluminum widely used in mechanical parts, the plane automobile components, precision instrument and radio equipment, building decoration, machine shell, lamps and lighting, electronic consumer products, handicrafts, household appliances, interior decoration, sign, furniture, automobile decoration etc.


Why Use ACP?

ACP is a new material for advertising and architecture, it has many features than traditional materials, it is solid, string hard but light weight, it has multiple colors and good weather resistance, also it is easy to be fabricated into different shapes.



Our advantage:

1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time;
8. Good communication skills, and good after sells service, and understandings for customers;

Aluminum Composite Panel

Aluminum Composite Panel

aluminum composite panel


Aluminum Composite Panel

FAQ
1, Q: Are you manufacturer of aluminum mirror sheet?
A: Yes, we are established in 2006. As a manufacturer welcome to visit our factory.

2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.

4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable pipe & tubes.
