Aluminum Liquid Storage Tank For Car Evaporators

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 100 Piece/Pieces
Delivery Time: 20 Days

Additional Info

Packaging: Ply-wood box specialized for export

Productivity: 70000 pcs/month

Brand: Trumony

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 70000 pcs/month

Certificate: IATF

Port: Shanghai Port

Product Description

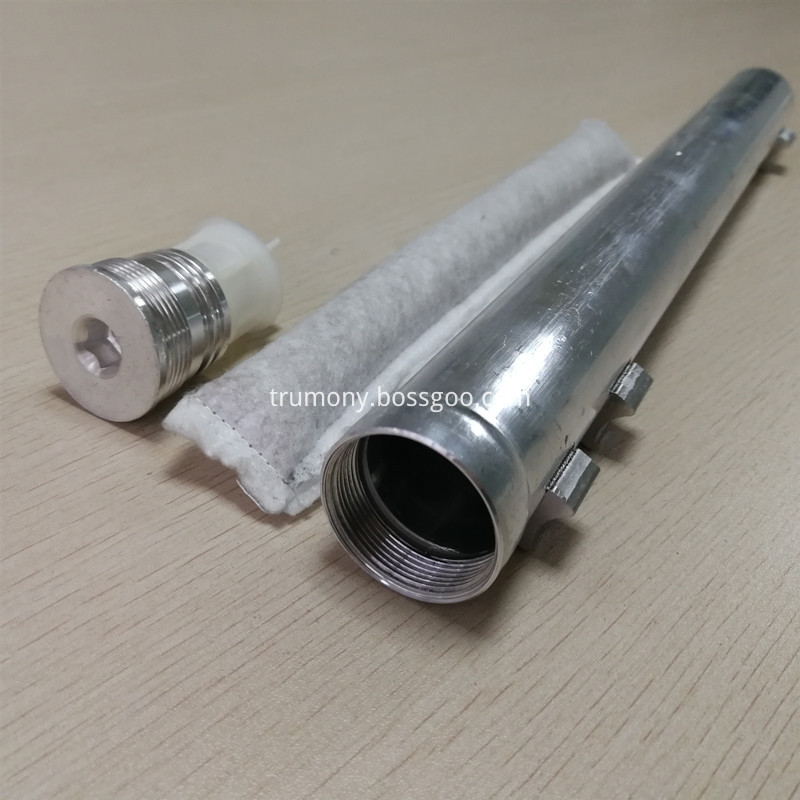

Product name: Aluminum Liquid Storage Tank For Car Evaporators


We are supplying the integrated storage tank series which are widely used for automobile condensers/evaporators.


Our aluminum liquid storage tank has the following features:

1) One time extrusion, the bottom of the tube is a blind hole, to make sure there is no leakage in the bottom.Besides,it is also more convenient for the installation of compression release valve in the new energy car.
2) Seamless and high pressurization with wall thickness 2mm,which is complied with current requirement for light-weight.
3) Strict cold extrusion production process,wall thickness tolerance within 0.1mm which can make sure of the burst pressure after putting into the furnace.
4) The decrease of the weight and the structure of the blind hole in the bottom can much decrease the heat absorption during the brazing process.


Specifications:

Outside diameter
35mm
Outside diameter
31.5mm
O-type ring
22x2.5mm
Core alloy
3003
Plug
030-DT-S10
Length As per customers' requirement


Appearance: No visible scratches, defects, oil


Application:Automobile evaporators/condensers

Liquid Storage Tank3

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, hae export over 53 countries of worldwide. Our main products are aluminum alloy cladding material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for aluminum battery cooling pad for electronic vertical, automobile heat exchangers such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern machinery and equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out equipments for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system,etc.
