Aluminum Threaded Tube for Automobile Heat Exchangers

Unit Price: USD 50.0000 - 500.0000 / Piece/Pieces
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Piece/Pieces
Delivery Time: 30 Days

Additional Info

Packaging: Fumigated pallet specialized for export

Productivity: 100000pcs per month

Brand: Trumony

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 1200000pcs per year

Certificate: ISO 9001

HS Code: 7608

Port: Shanghai Port

Product Description

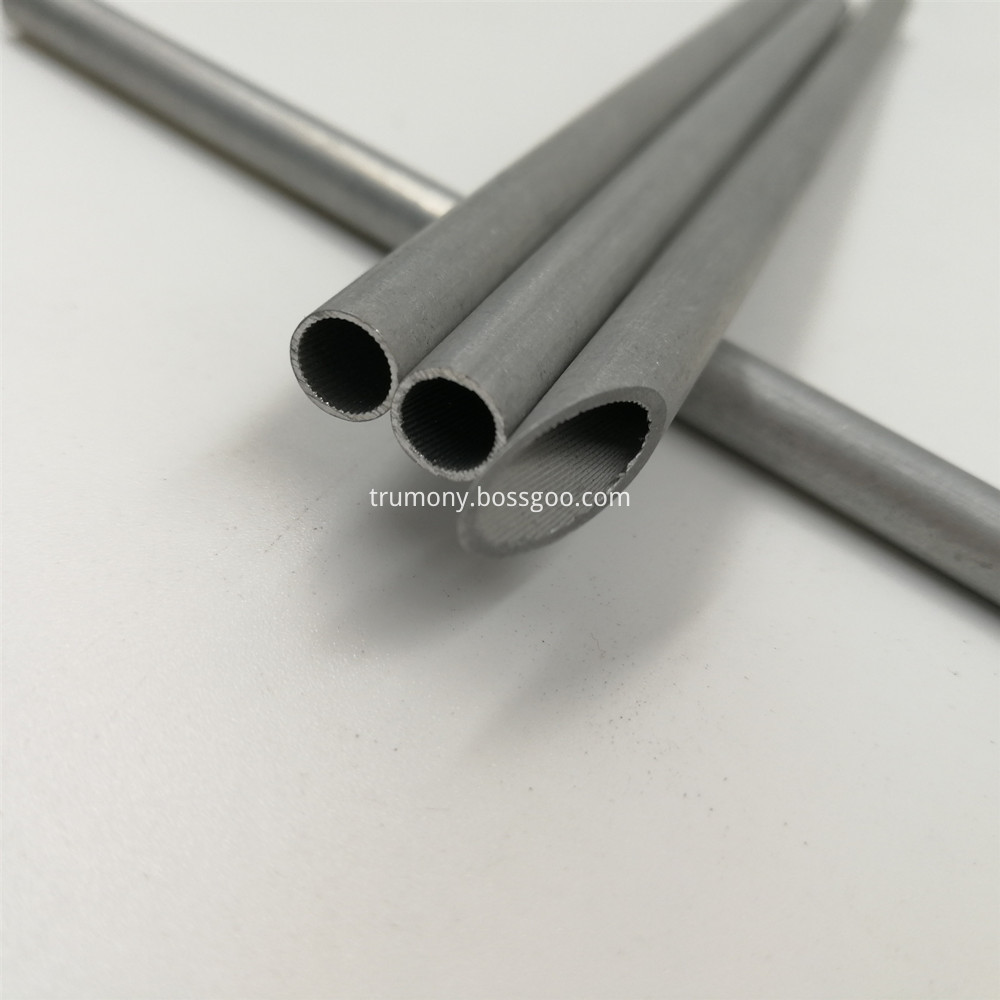

Aluminum Threaded Tube for Automobile Heat Exchangers


Product Description:

The Aluminum Inner Grooved Tube is following a helical pattern and have been optimized to improve heat transfer. The improvement in heat transfer coefficient of the tube is two times what can be achieved with traditional smooth bore tubes3. This increased efficiency can help achieve a more compact design of the heat exchangers and a reduction in refrigerant load. different grooves depth and geometry satisfy the specific regional requirements and refrigerants in use.


Specification bottom wall thickness Tooth height Tooth number Helix Angle Rib-top Angle g/m
φ7mm 0.4-0.5 0.05-0.18 40-50 18° 50° 28+/-3
φ9.52mm 0.45-0.55 0.05-0.18 45-55 18° 50° 45+/-3
φ7.94mm 0.4-0.5 0.05-0.18 40-50 18° 50° 40+/-3


The parameters in above form can also be adjusted as per customer's request.


Mechanical property:

Tensile:120MPa min

Elongation:35% min
Expanding:40% min
Density:2.7

Application:Air-conditioner heat exchanger system

Product feature:
1. Light-weight
2. Good thermal conductivity properties and electrical conductivity
3. Good corrosion resistance
4. Good forming and bending properties
5. High recycling value
6. Small deviation range
7. High surface quality


Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, 6101 T63 High Conductivity Aluminum Conduction Plates, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.


inner grooved tube
