CCL Aluminum Base Copper Cladding Laminate sheet

Unit Price: USD 2600.0000 / Metric Ton
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 5 Metric Ton
Delivery Time: 25 Days

Basic Info

Model No.: TR-J072

Material: 1000 Series, 2000 Series, 3000 Series, 4000 Series, 5000 Series, 6000 Series, 7000 Series

annealing: O-H112, T3-T8, T351-T851

species: Plate

Surface treatment: Coated

Whether alloy: Is Alloy

place of origin: China

tolerance: ±1%, ±5%

Processing Service: Bending, Decoiling, Welding, Punching, Cutting

Additional Info

Packaging: Standard export package

Productivity: 100000tons per month

Brand: Trumony

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 1200000tons per year

Certificate: ISO 9001

HS Code: 7606

Port: Shanghai

Product Description

Product Name: CCL Aluminum Base Copper Cladding Laminate sheet


Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, 4047 H24 5052 Aluminum Base Copper Clad Sheet, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.


Trumony belief: Trust and Harmony


Mechanical property of CCL Aluminum Base Copper Cladding Laminate sheet:

Alloy code Temper Tensile Strength Rm(Mpa) Yield Strength Rp0.2(Mpa) Elongation

TR010,TR020,TR030,TR040,TR050,TR110,TR310,

TR116,TR316,TR111,

TR313,TR121,TR131,

TR141,TR150,TR151,TR156 etc

O 95~135* ≥35* ≥15*
H14 140~185 ≥125 ≥1.5
H24 140~185 ≥125 ≥3
H16 185~225 ≥160 ≥1
H18 ≥185 - ≥0.5
TR166 etc tube material H24 185~235 ≥150 ≥8
TR116,TR316 etc tube material H14 140~185 ≥125 ≥3
  H24 140~185 ≥125 ≥8


Title goes here.

1) Alloy : 4047,5052 etc
2)Temper:H24, H32 etc
3) Thickness: 1.5mm/ 2.0 mm or Customrized
4) Size: 1250mm / 1270mm*1070mm or Customized
5) Protective film can be added
6) Production Line: DC and CC production line etc

7) Advantage: The surface is basically free of defects, and the plate type is smooth, which can meet the requirements of compounding with copper foil;

4047 has the lowest coefficient of thermal expansion in aluminum materials, suitable for high temperature working environment is not easy to deformation, prolong the life of aluminum base copper clad plate.

8) Use place: Electric vehicle charging circuit board for heat exchange



Our advantage:

1. Since 2006, we have rich experience in this industry in China;

2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. With Certificate ISO9001-2008;
6. High performance cost ratio;
7. Fast delivery time;
8. Good communication skills, and good after sells service, and understandings for customers;

9.has excellent flame retardant, high mechanical strength, dimension stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float. It is widely used for modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.

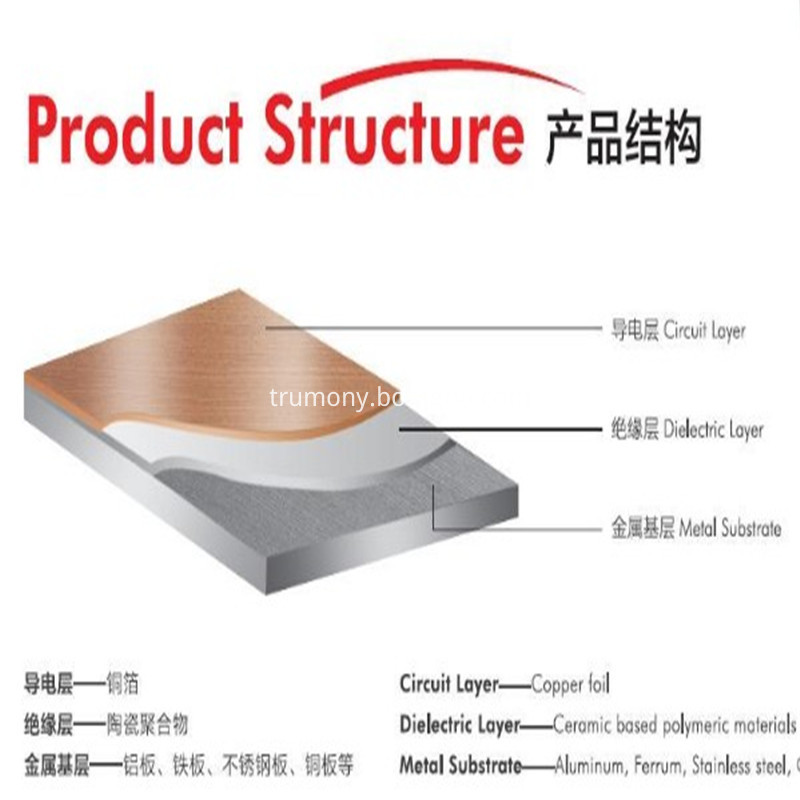

4047 H24 5052 H32 Aluminum Base Copper Clad Sheet04

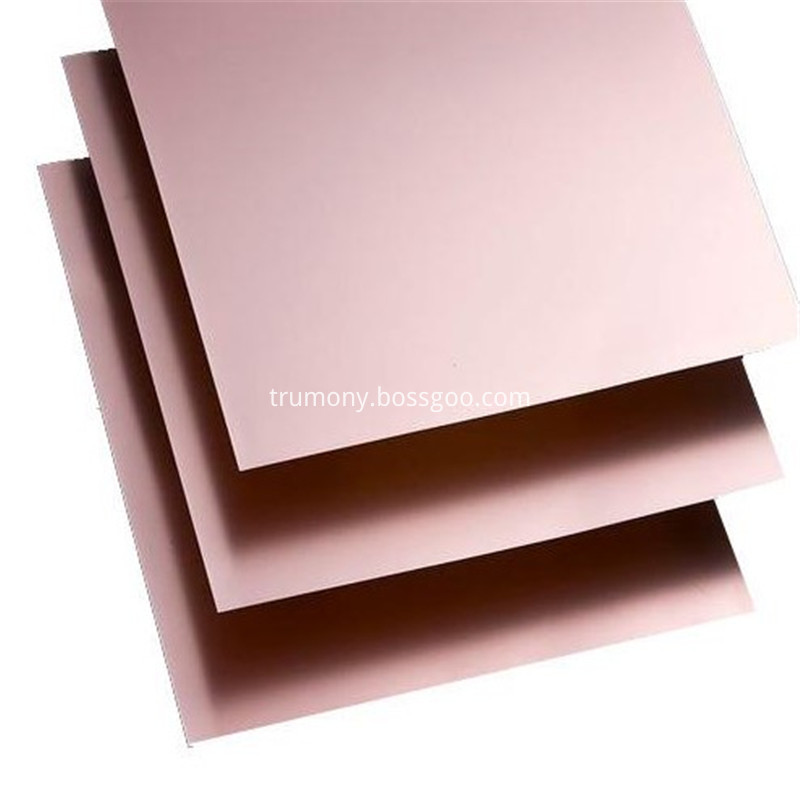

4047 H24 5052 H32 Aluminum Base Copper Clad Sheet02

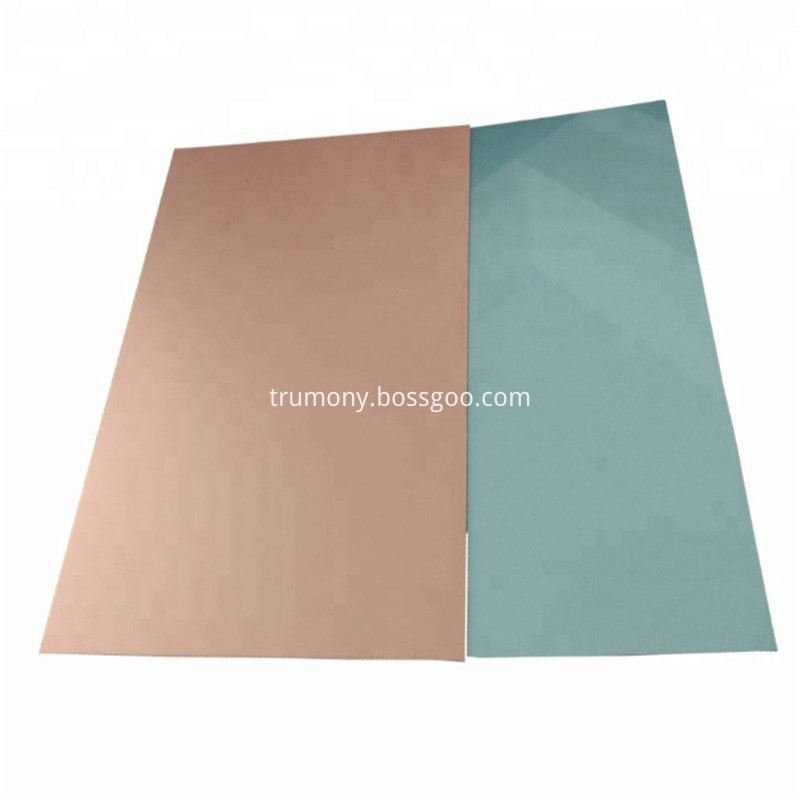

4047 H24 5052 H32 Aluminum Base Copper Clad Sheet03

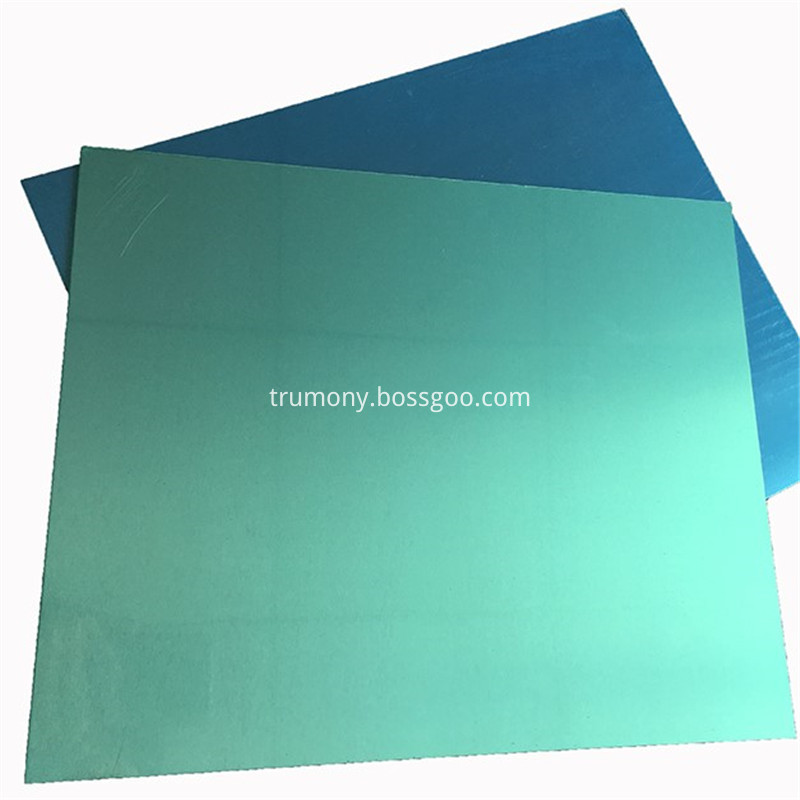

aluminum plate

4047 H24 5052 H32 Aluminum Base Copper Clad Sheet01

FAQ
1, Q: Are you manufacturer of 4047 H24 5052 CCL Aluminum Base Copper Cladding Laminate sheet?
A: Yes, we are established in 2006. As a manufacturer welcome to visit our factory.

2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.

4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable pipe & tubes.
