D - Type Aluminium High Frequency Welded Pipes

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Ton
Delivery Time: 7 Days

Basic Info

Model No.: TR005

Additional Info

Packaging: Standard Exporting Package

Transportation: Ocean,Land,Air

Port: Shanghai,Tianjin,Qingdao

Product Description

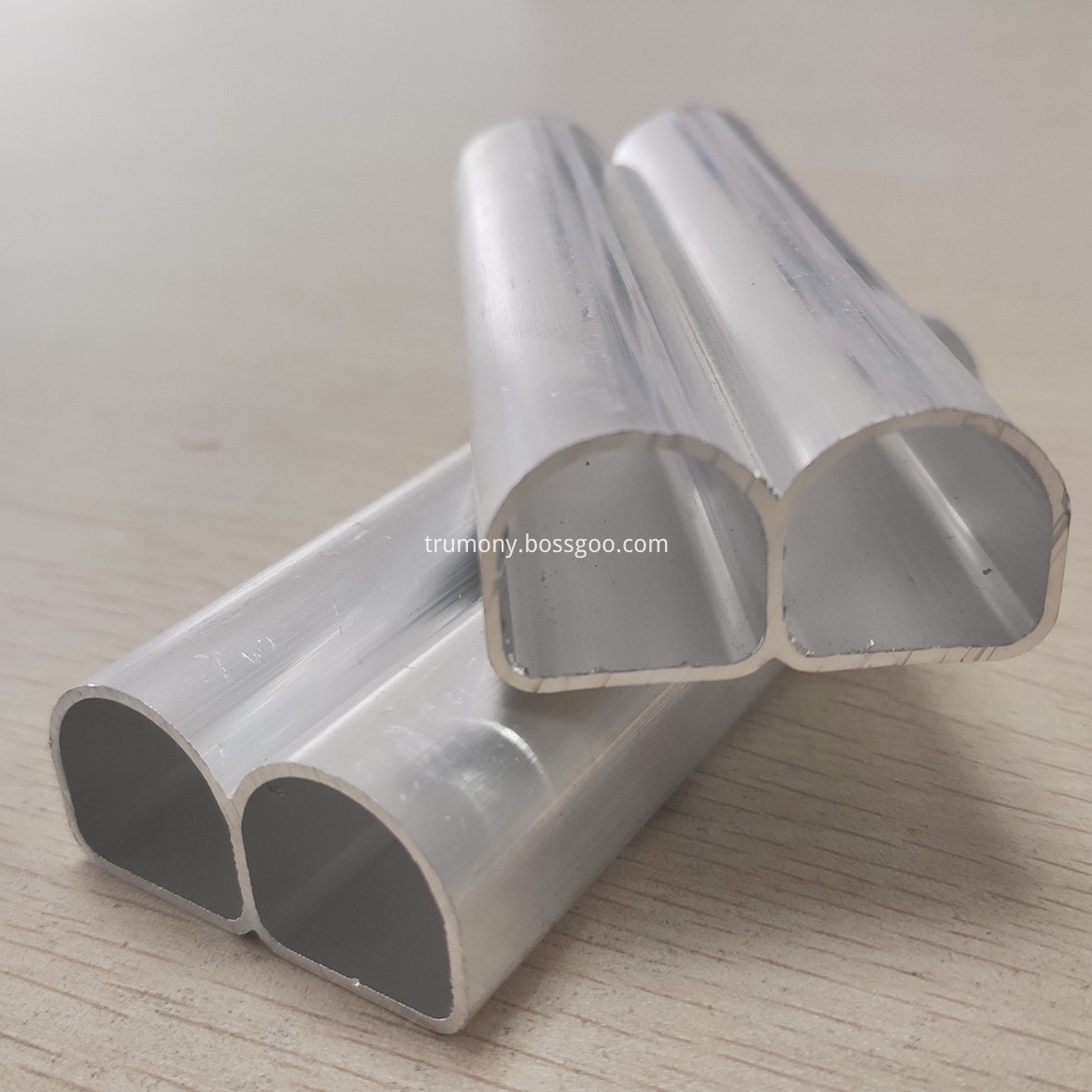

D - Type Aluminium Extruded Profiles High Frequency Welded Pipes

1.Application:
Our Aluminium D-Type High Frequency Welded Pipes are widely used for Radiator for car&off-road.

2.Raw Material:
as request, general raw material.

Description Core Clad 1
Alloy States 3003 4343
3005 4343



3.Material Thickness:
0.8-1.5mm

4.Tube Specification

Description Specification(W*H*T)mm Specification(W*H*T)mm
HF D-Type Tube 16.05*18.05*0.8
HF D-Type Tube 20*13*0.8
HF D-Type Tube 20.3*13.075*1.5
HF D-Type Tube 20.4*18.0*1.2 24*20*1.0
HF D-Type Tube 28*16*1.0
HF D-Type Tube 14*1.6*0.24 14*1.6*0.26



5.Commercial terms

Minimum Order Quantity: 5 metric tons
Price: negotiation
Payment Terms: T/T or LC
Supply Ability: 50,000 mt per year
Delivery Time: 30 working days after received your down payment
Packaging Details: Standard export packaging

HF D-Type Tube

Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum sheet, aluminum plate, aluminum coil, 3003 aluminum water cooling plate for heat sink, aluminum foil, aluminum strip, aluminum pipe, aluminum tube, aluminum heat exchange etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, coating finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
