Dimple Flat Tube with Rib

Unit Price: USD 4000.0000 / Ton
Min. Order: 1 Ton

Basic Info

place of origin: China

Material: 3000 Series, 4000 Series

shape: Round, Square, Oval

Surface treatment: Anodized, Mill Finished

Whether alloy: Is Alloy

tolerance: ±1%, ±3%, ±5%

Processing Service: Bending, Decoiling, Welding, Punching, Cutting

Annealed state: O - H112

Shape: Flat Oval

Surface Treatment: Mill Finished

Grade: 3000 Series

Alloy: 4343/3005/4343;4343/3003/4343

Temper: H24

Material Thickness: 0.22-0.5mm

Application: Heavy Truck And Off-road Vehicle

Additional Info

Packaging: Ply-wood box specialized for export

Productivity: 100000 ton/year

Brand: Trumony

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000 ton/year

Certificate: IATF

HS Code: 7608

Port: Shanghai Port

Product Description

Dimple Flat Tube with Rib

Trumony is the aluminum material supplier in China,we are supplying the aluminum brazing sheet,aluminum brazing tube,aluminum brazing foil,aluminum micro channel tube and Dimpled Hourglass Tube for automotive heat exchangers,including Radiators for Car and Off-Road,Heavy duty truck and off-road vehicle heat exchangers,Oil coolers,Charge air coolers.Our Dimpled Aluminum Hourglass Tube contains a lot of tube types, including radiator tubes(flat oval aluminum tubes),Dimple Flat Tube with Rib,high frequency B-type tube,Dimple hourglass tube,Folded B-tube,Oil cooler tube,CAC tube etc.The regular supplying material alloy are including 4343/3003/7072,4343/3005/7072,4343/3003/4343 and 4343/3005/7072,the regular temper are including H14 or H24.

Quick details:
Application: Heavy truck and off-road vehicle heat exchanger
Material: 4343/3005/4343;4343/3003/4343
Temper: H24
Cladding rate: 10% each side
Burst: 4.6MPa
Available Size: 16x2.0x0.32mm

Technical Requirements:
1. Full-length welding, slag cleaned;
2. Clean surface, no obvious water stain, dent and scratch defects;
3. No split at tube cutting edges, cutting burr less than 0.10mm;
4. Straightness and bend allowed: ≤0.5mm/500mm length;
5. The Burst Pressure here is on theoretical value for reference, please refer to the real test value.
Other specifications could also be supplied as per customers' requirement.

Type Size(WxHxT)mm Size(WxHxT)mm Size(WxHxT)mm Size(WxHxT)mm
Dimple Flat Tube 16x2.0x0.32 16x2.0x0.3

Dimple Flat Tube 22x2.0x0.22 22x2.0x0.3

Dimple Flat Tube 26x2.0x0.25 26x2.0x0.3

Dimple Flat Tube 32x2.0x0.25 32x2.0x0.3

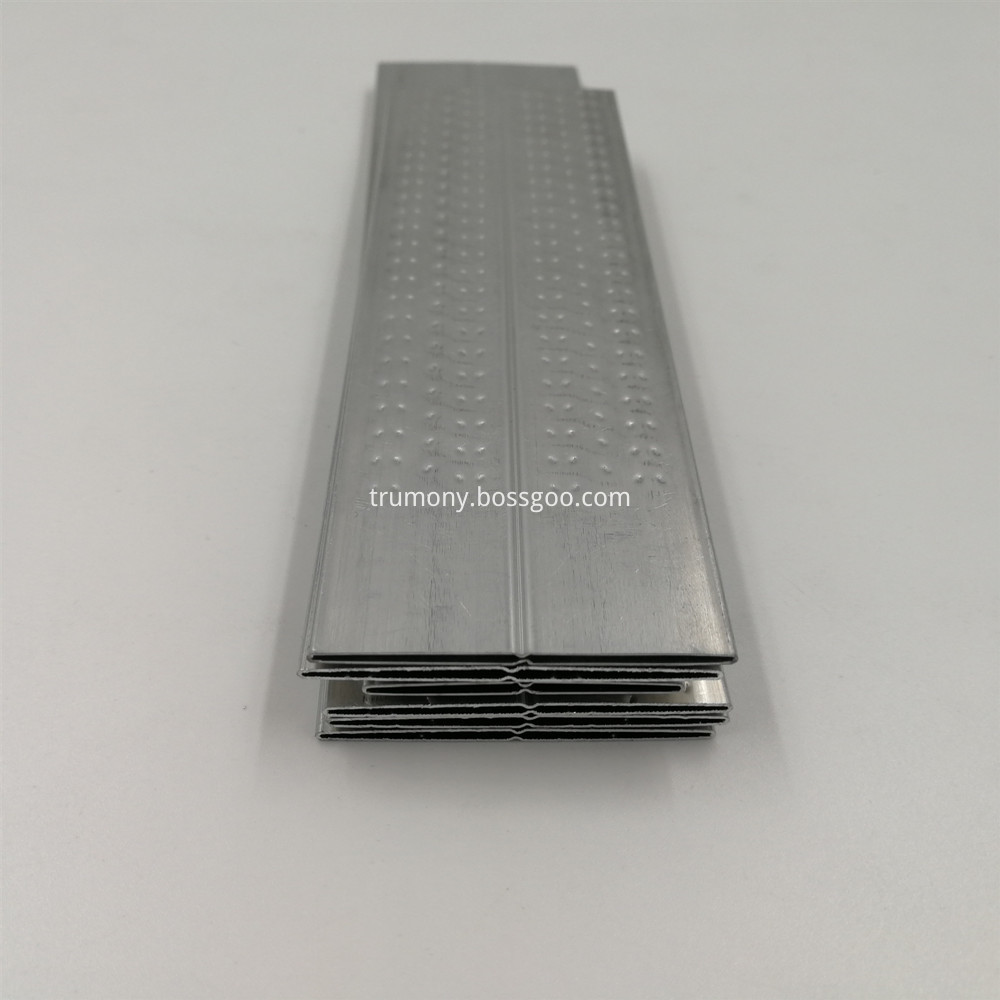

Dimple Flat Tube

Dimpled aluminum tube
