Product Description

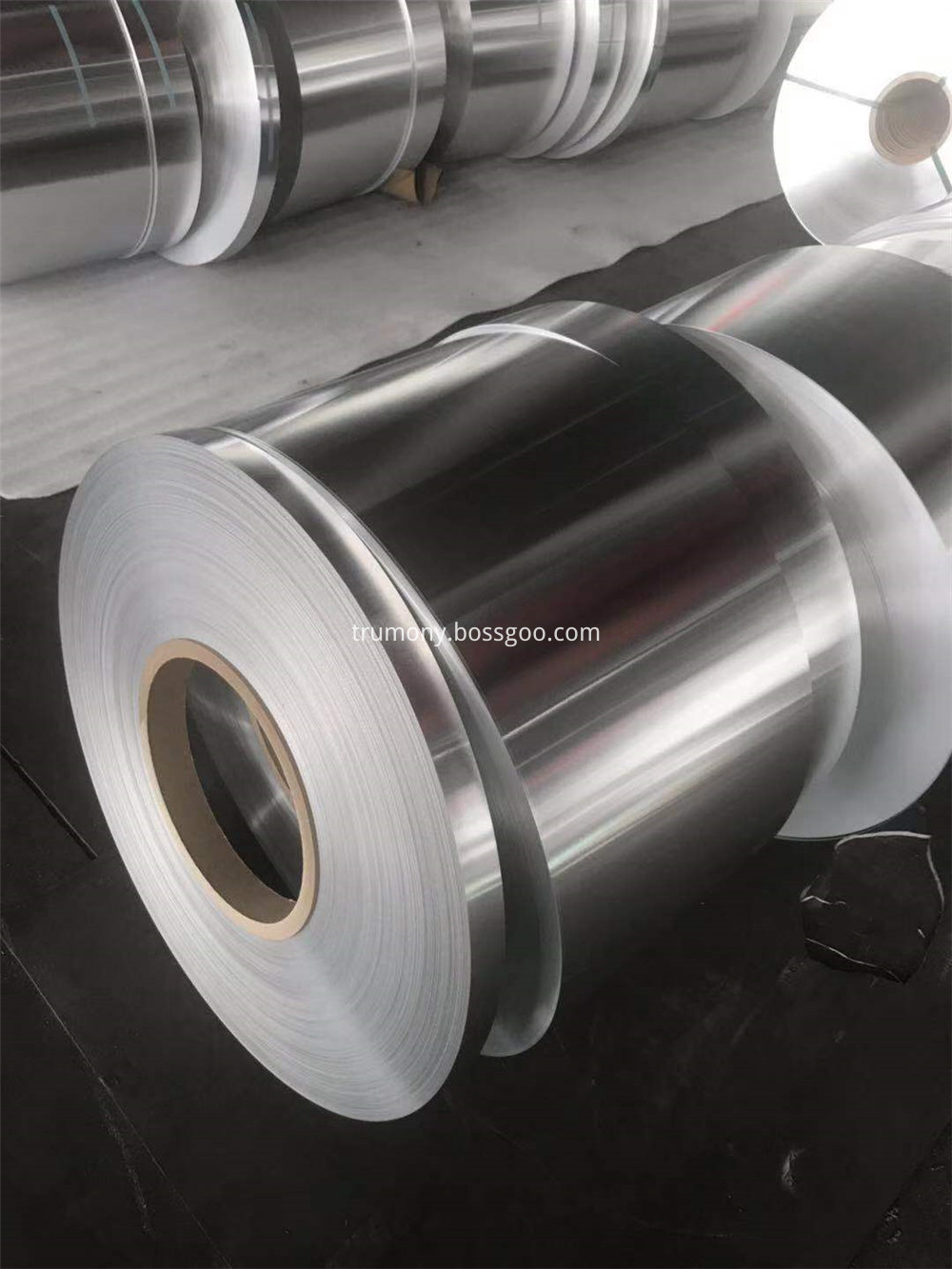

Product Name: Epoxy coating aluminum foil coil for marine
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, cole material and other aluminum products like aluminum coil, aluminum hydrophilic foil, aluminum strip, aluminum pipe, aluminum tube etc, for automobile heat exchangers such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.
Mechanical property:
|
Alloy code
|
Temper
|
Tensile Strength Rm(Mpa)
|
Yield Strength Rp0.2(Mpa)
|
Elongation
|
|
TR010,TR020,TR030,TR040,TR050,TR110,TR310,
TR116,TR316,TR111,
TR313,TR121,TR131,
TR141,TR150,TR151,TR156 etc
|
O
|
95~135*
|
≥35*
|
≥15*
|
|
H14
|
140~185
|
≥125
|
≥1.5
|
|
H24
|
140~185
|
≥125
|
≥3
|
|
H16
|
185~225
|
≥160
|
≥1
|
|
H18
|
≥185
|
-
|
≥0.5
|
|
TR166 etc tube material
|
H24
|
185~235
|
≥150
|
≥8
|
|
TR116,TR316 etc tube material
|
H14
|
140~185
|
≥125
|
≥3
|
|
|
H24
|
140~185
|
≥125
|
≥8
|
Color: Blue, red, white, black, yellow, green, golden etc
Alloy code: 1000 series, 2000 series, 3000 series, 4000 series, 5000 series, 6000 series, 8000 series
Thickness: 0.06-0.2 mm, or 6 micron-20 micron
Width: 200-1550mm or customized
Application:packaging, laminating, food container, pharmaceutical, blister etc
Description and advange of Epoxy coating aluminum foil coil for marine:
Hydrophilic foil is the main raw material of heat exchanger in air conditioner. It is widely used in household air conditioner, refrigerator, automobile air conditioner and other refrigeration equipment. Compared with ordinary light foil, it has the following advantages:
1, can increase the anti-corrosion, anti-mold, no odor function;
2. The condensed water on the accumulated surface of the heat exchanger is evenly distributed on the surface, which will not cause the aggregation and blockage of the heat exchanger after the formation of water droplets and affect the heat exchange conditions, thus increasing the heat exchange rate by 5%;
3. Since there are no beads in the water, the noise caused by vibration is correspondingly reduced;
4, can prevent the air conditioner oxidized powder blowing into the room to produce adverse effects on the human body, in line with environmental requirements;
5. The hydrophilic aluminum foil for air conditioner heat sink shall comply with YS/T95.2-- 2001
6. The anticorrosion performance of epoxy is better than that of hydrophilic, and our current standard is that epoxy can be acidic
500 hours fog, grade 8 and above, hydrophilic can achieve 500 hours of neutral salt fog test, grade 9.5 and
The above
7. Epoxy can be applied to special environments, such as PH 3 environment, such as Marine, fermentation engineering,
Industrial vegetable greenhouses and so on, and hydrophilic can only be applied to the neutral environment.
