Product Description

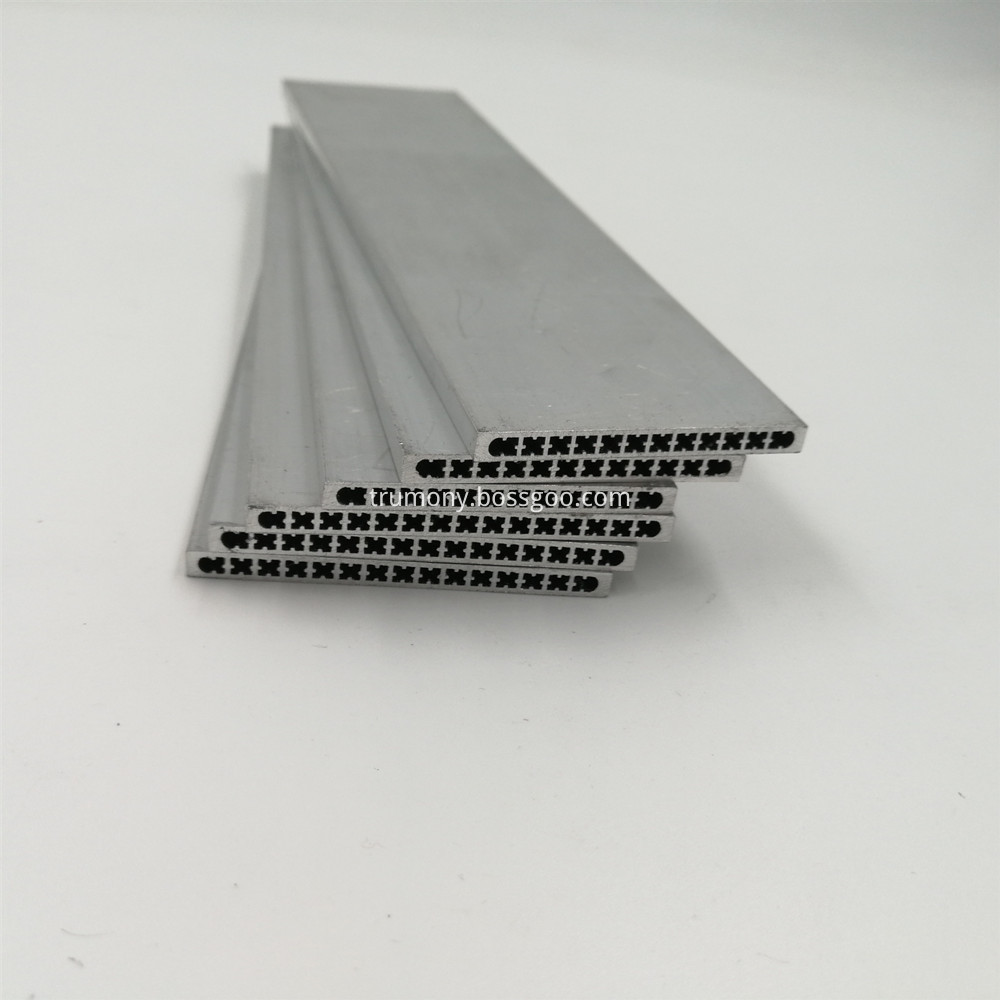

Product name: 3003 / 3102 Flat Aluminium Condenser Tube Extrusion For Automobile
Aluminum Tube Extrusion is the high-tech aluminum product under the process of hot extrusion from refined aluminum ingot and then zinc spraying for anti-corrosion.
Our Aluminum Tube Extrusion is the core material of new generation parallel flow air conditioning heat exchangers.It is outstanding environment-friendly,efficient,energy-saving and cost reduction and was approved vividly in automobile air conditioning system.With restriction and prohibition of the application of the traditional refrigerant,it is a trend that household and commercial air conditioning heat exchanger needs revolution.Our Aluminum Tube Extrusion will play an important role in this field.
Commonly used material chemical composition
|
No.
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
V
|
Ti
|
|
1
|
1050
|
≤0.25
|
≤0.40
|
≤0.05
|
≤0.05
|
≤0.05
|
---
|
≤0.05
|
≤0.05
|
≤0.03
|
|
2
|
1100
|
≤0.95(Si+Fe)
|
0.05-0.20
|
≤0.05
|
---
|
---
|
≤0.10
|
---
|
---
|
|
3
|
3102
|
≤0.40
|
≤0.70
|
≤0.10
|
0.05-0.40
|
---
|
---
|
≤0.30
|
---
|
≤0.10
|
|
4
|
3003
|
≤0.15
|
≤0.15
|
≤0.01
|
0.90-1.10
|
≤0.03
|
≤0.03
|
≤0.05
|
≤0.05
|
≤0.05
|
Supply state and mechanical properties
|
Alloy
|
Temper
|
Tensile Strength
|
Yield Strength
|
Elongation
|
|
1050
|
O/F/H111/H112
|
≥65MPa
|
≥20MPa
|
≥25%
|
|
1100
|
O/F/H111/H112
|
≥75MPa
|
≥20MPa
|
≥25%
|
|
3102
|
O/F/H111/H112
|
≥75MPa
|
≥20MPa
|
≥25%
|
|
3003
|
O/F/H111/H112
|
≥75MPa
|
≥20MPa
|
≥25%
|
Beside increased global performances, an all-aluminium brazed heat exchanger using Aluminum Tube Extrusion will also present better corrosion resistance. Aluminum Tube Extrusions are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater cores
Aluminum Tube Extrusions are available in various sizes and alloys, ensuring the best properties for the purpose required.
Dimensions: Designed to customer specification
Package: coils or Straight with fixed length
Surface Treatment : Zinc spray / without Zinc spray
Company Introduction:
Trumony Aluminum Co.LTD build from 2006, hae export over 53 countries of worldwide. Our main products are aluminum alloy cladding material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for aluminum battery cooling pad for electronic vertical, automobile heat exchangers such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern machinery and equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out equipments for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system,etc.
