Flat Aluminum Tube Extrusions For Auto Heat Exchangers

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 2 Ton
Delivery Time: 35 Days

Basic Info

place of origin: China

Material: 1000 Series, 3000 Series

shape: Oval, Square

Whether alloy: Is Alloy

Annealed state: O - H112

Processing Service: Bending, Welding, Punching, Cutting

Additional Info

Packaging: ply-wood box specialized for export

Productivity: 100000Ton per Year

Brand: Trumony

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 100000Ton per Year

Certificate: TS16949,ISO

HS Code: 7608

Port: Shanghai

Product Description

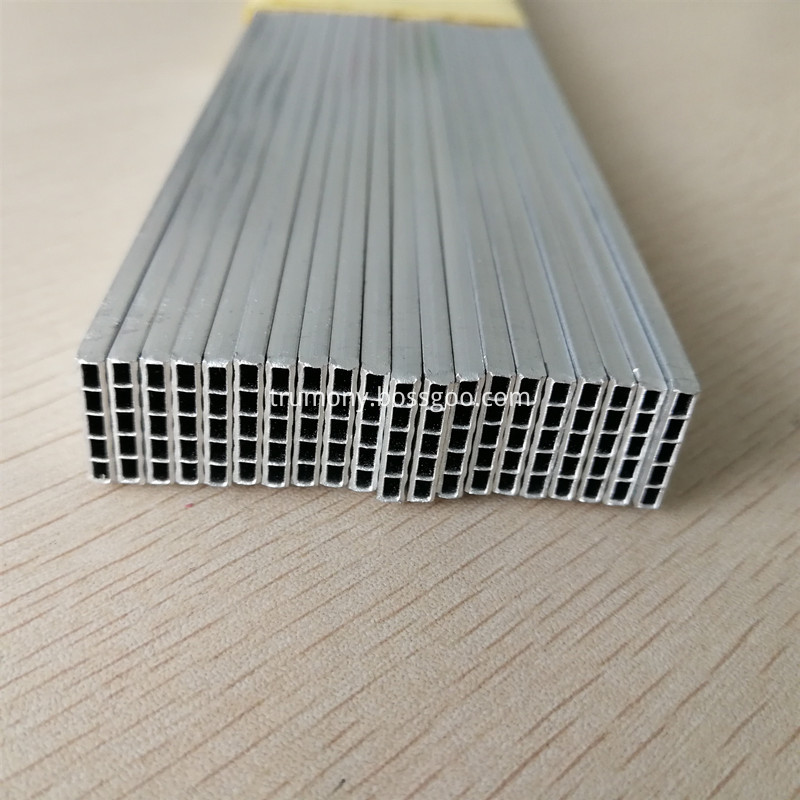

Flat Aluminum Tube Extrusions For Auto Heat Exchangers

We are supplying the 3003/3102/1100 H112 aluminum micro channel tube and also the wide and flat extruded aluminum tube for heat exchangers.We have installed the new extrusion machine and now been able to supply the Aluminum Extrusion Pipe with more than 100mm width. Aluminum Micro Channel tube is a very important spare part for auto condenser and evaporator.Good quality Aluminum Tube can protect auto engine, as it ensure your radiator/condenser/CAC with high efficient cooling performance.Benifit from our own tooling center, lots of ready molds are with us.Based on good channel flow design, coolant can run inside the tube and ensure high cooling efficiency.You can also design your own tube and send us the drawing through our sales representatives,we can do the Custom manufacturing based on your drawing. Besides the aluminum tube,we are also supplying the completed aluminum brazing strip coil and aluminum brazing sheet with the brazing layer so that they can brazed together.

Product Description:

Multiport Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:

1. Lower energy costs
2. Higher performance
3. Less space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution

Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:

Oil coolers

Heater cores

Multiport Extruded Aluminum Tube are available in various sizes and alloys, ensuring the best properties for the purpose required.

Dimensions: Designed to customer specification

Package: Coils or Straight with fixed length

Surface Treatment : Zinc spray / without Zinc spray

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05

Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%

multiport aluminum tube
