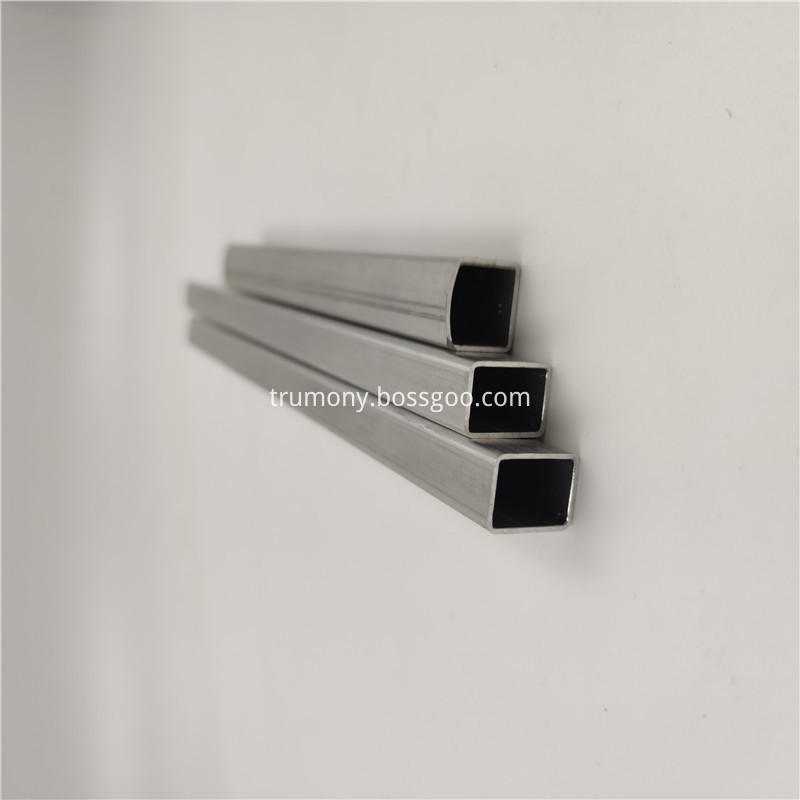

Heat Exchange Radiator HF Tube for off-Road Vehicle

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 2 Ton
Delivery Time: 45 Days

Basic Info

Shape: Square

Surface Treatment: Mill Finished

Grade: 3000 Series

Alloy: Alloy

Temper: O - H112

Additional Info

Packaging: export shipment package

Transportation: Ocean,Land,Air

Port: Shanghai

Product Description

Feature
The luster is luminous
High efficient heat transfer, good temperature control
Non-toxic, odorless, impermeable
Compact structure light and economical
Withstand high heat and extreme cold
Minimize cleanup and ensure food fresh
Environment friendly, recoverable and recyclable
High reliability and exchanging heat low noise

Specification:
1, we can do various size per customer's requirements
2, Alloy Code: 3000, 6000 and other series aluminum alloy
3, Surface treatment: anodizing ,polishing, turning ,power coating, mill finish etc
4, Design: OEM, ODM, or we ourselves can also provide design service
5, Equipment: CNC, extruding machine, cold drawn machine, heating oven, straigtening machine,
cutting machine
6, Team Support: Professional design team, technology team and sales team

FAQ
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A:  Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q: Can you assist in design?
A: Yes, we can! We have a strong and experienced design team.
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
Aluminum Temper:
1000 series: 1035,1040,1050,1060,1070,1080,1090,1098,1100,1230,1435,1260,1170,1275,1285,1385
2000 series: 2001,2002,2011,2014,2017,2117,2218,2519,2024,2224,2025,2030,2031,2036,2090,2091
3000 series: 3002,3003,3004,3103,3203,3303,3105,3006,3007,3107,3008,3009,3015,3016
5000 series: 5005,5205,5006,5010,5013,5014,5016,5017,5040,5043,5050,5150,5251,5351,5451,5052,5083
5352,5552,5254,5754,5856,5456,5283
O,H12,H13,H14,H16,H18,H24,H32,H34,H19,H38,G36,F,H111,H112,H192,H392,H393,H321
T1,T3,T4,T8,T72,T451,T42,T62,T5,T6,T36,T351,T651,T851,T3511,T913,T94,T7351,T89,T4510,T6510,T8510,T8511,T4511,T52,T5511,T6511,T54,T73

Mechanical property
Alloy Code Temper Tensile Strength Rm(Mpa) Yield Strength(Mpa) Elongation(%)
TR-010,TR-020,TR-030,TR-040TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3
H16 185-225 160 ≥1
H18 ≥185 -- ≥0.5
TR-166Etc. Tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8

OD OD Tolerance ID Tolerance Roundness straightness Circular   run-out
φ16-20 ±0.02 ±0.02 0.01↓ 0.015↓ 0.05↓
φ20-30 ±0.02 ±0.02 0.01↓ 0.015↓ 0.05↓
φ30-50 ±0.05 ±0.05 0.02↓ 0.020↓ 0.08↓
φ50-80 ±0.15 ±0.10 0.05↓ 0.025↓ 0.10↓

Mechanical Properties
No Alloy Temper Tensile
strength
Yield
strength
Elongation
1 1050 O/F/H111/H112 ≥ 65 ≥ 20 ≥ 25
2 1100 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
3 1197 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20
4 3102 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
5 3R03 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20

aluminum tube
