Micro Multi Port Extruded Aluminum Tube For Evaporator

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Ton
Delivery Time: 7 Days

Basic Info

Model No.: TR021

Additional Info

Packaging: Standard Exporting Package

Transportation: Ocean,Land,Air

Port: Shanghai,Tianjin,Qingdao

Product Description

1.Application:

   1) car air conditioner
   2) in the field of commercial:
       such as household air conditioner, condenser, evaporator, fridge, oil cooler and inter cooler

2.Alloy States:
   1) 1000 series:1050, 1100, 1197
   2) 3000 series:3102, 3R03

3.Temper: O/F/H111/H112

4.Mechanical Properties
No. Alloy Temper Tensile Strength(Mpa) Yield Strength(Mpa) Elogation(%)
1 1050 O/F/H111/H112 ≥ 65 ≥ 20 ≥ 25
2 1100 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
3 1197 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20
4 3102 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
5 3R03 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20


5.Chemical Composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤ 0.25 ≤ 0.40 ≤ 0.05 ≤ 0.05 ≤ 0.05 - ≤ 0.05 ≤ 0.05 ≤ 0.03
2 1100 ≤ 0.95(Fe+Si) 0.05-0.20 ≤ 0.05 - - ≤ 0.10 - -
3 1197 ≤ 0.15 ≤ 0.20 0.40-0.55 0.10-0.20 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05
4 3102 ≤ 0.40 ≤ 0.70 ≤ 0.10 0.05-0.40 - - ≤ 0.30 - ≤ 0.10
5 3R03 ≤ 0.15 ≤ 0.15 ≤ 0.01 0.90-1.10 ≤ 0.03 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05


6. Size Tolerance

Width Thickness Wall Thickness Length Lateral Curvature Frontal Curvature Twsiting Dgree
± 0.05mm ± 0.03mm ± 0.05mm ± 0.03mm ≤ L× 0.2% ≤ L× 0.25% ≤ L× 0.15%


7.Our products will be tested in strict standard before delivery, some data for your reference.


No Products' Testing Name Contents and requests
1 Corrosion Resistance Salt spray test: ≥ 750 hours
2 Zn Coating Standards 6/8/10/13± 2g/square meter
3 Flux Cotaing Standards 10-15± 2g/square meter



8.Commercial terms

Minimum Order Quantity: 5 metric tons
Price: negotiation
Payment Terms: T/T or LC
Supply Ability: 50,000 mt per year
Delivery Time: 30 working days after received your down payment
Packaging Details: Standard export packaging

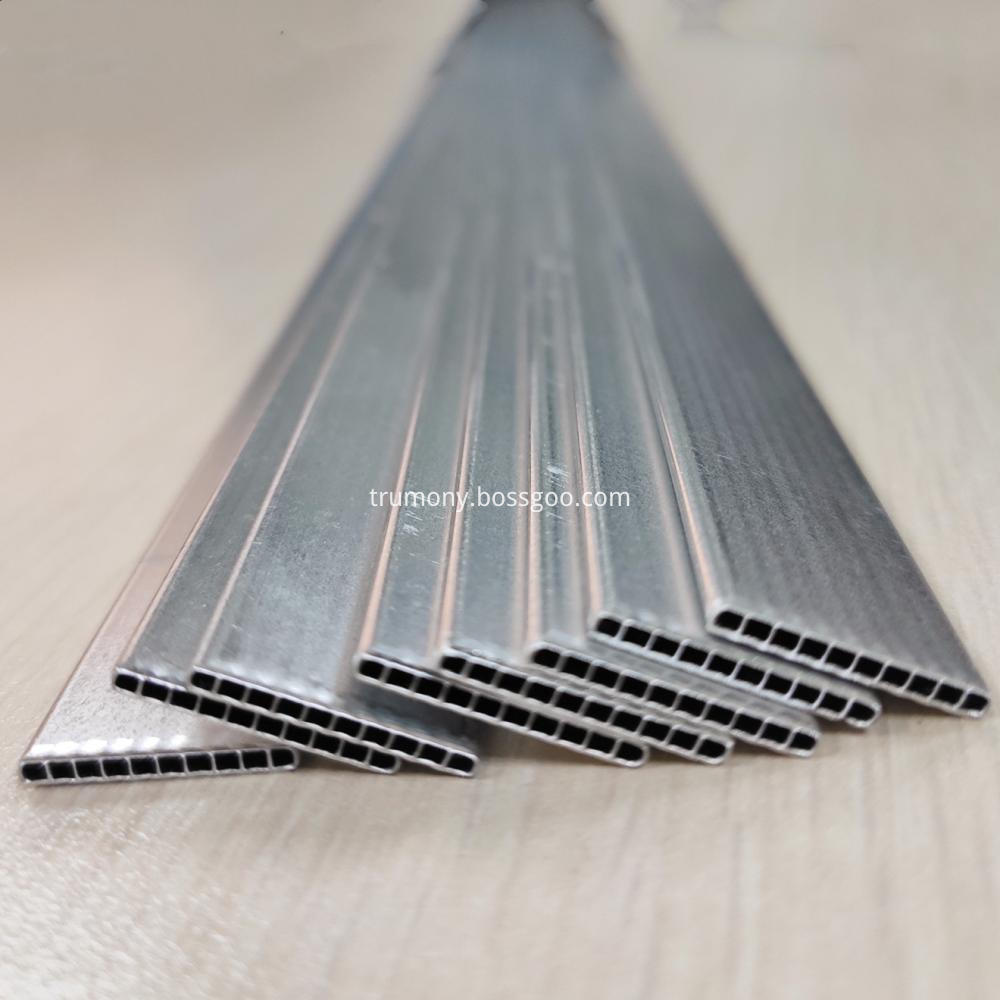

Micro Multi Port Extruded Aluminum Tube
FAQ
1, Q: Are you manufacturer?
A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.

2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.

4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.

5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
About sample shippment,you need to pay for the freight,usually freight collect by express.

6. Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
1~2days if no stocked sample and the sample structure is not complex;
3~5days if no stocked sample and the sample is with complex structure.


Company Introduction:

Trumony Aluminum Co.LTD build from 2006, hae export over 53 countries of worldwide. Our main products are aluminum alloy cladding material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum pipe, aluminum tube etc, for aluminum battery cooling pad for electronic vertical, automobile heat exchangers such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern machinery and equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out equipments for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system,etc.
