Ultra Width Aluminum Micro Channel Pipe Design

Unit Price: USD 10.0000 - 500.0000 / Piece/Pieces
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Piece/Pieces
Delivery Time: 15-30 Days

Basic Info

Model No.: TR-J146

place of origin: China

Material: 1000 Series, 2000 Series, 3000 Series, 4000 Series, 5000 Series, 6000 Series, 7000 Series

shape: Oval, Round, Square

Surface treatment: Polished, Brushed, Powder Coated, Anodized, Mill Finished, Sand Blasted

Whether alloy: Is Alloy

Annealed state: T3 - T8

tolerance: ±1%, ±5%

Processing Service: Bending, Decoiling, Welding, Punching, Cutting

Additional Info

Packaging: Standard Exporting Package for Aluminum battery end plate

Productivity: 20000pcs per month

Brand: Trumony

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 2400000pcs per year

Certificate: ISO 9001

HS Code: 76109

Port: Shanghai

Product Description

Ultra Width Aluminum Micro Channel Pipe Design


Ultra Width Aluminum Micro Channel Pipe or Micro-channel aluminum flat tubeis a thin-walled porous flat tubular material that uses refined aluminum rods, through hot extrusion, and surface-sprayed with zinc for corrosion protection. It is mainly used in various refrigerants. In the air-conditioning system, as the piping parts carrying the new environmentally friendly refrigerant, the new environmentally friendly system is the key material for the new generation of parallel flow micro-channel air-conditioning heat exchangers. Those aluminum tubes are widely used for condensers, evaporators, etc.



Company Introduction:

Trumony Aluminum Co.LTD build from 2006, have export over 53 countries of worldwide. Our main products are aluminum alloy cladding material, core material and other aluminum products like aluminum coil, aluminum foil, aluminum strip, aluminum radiator tube for vehicle, aluminum pipe, aluminum tube, flat aluminum micro channel tube etc, for automobile heat exchangers area such as radiator, intercooler, condenser, evaporator and industrial heat exchangers, like electricity power radiator, air conditioner etc.There are complete sets of modern production and testing equipment operation workshops for casting, hot rolling, cold rolling, finishing and advanced check-out for researching and testing,such as WDW-3010- micro-controlled electronic universal testing machine,CALS-2000 aluminum alloy metallographic image analysis system etc.


1.Application:

   1) Battery

2.Alloy States:
1000 series , 3000 series

3.Temper: O/F/H111/H112 etc

4.Mechanical Properties of flat aluminum micro channel tube
No. Alloy Temper Tensile Strength(Mpa) Yield Strength(Mpa) Elogation(%)
1 1050 O/F/H111/H112 ≥ 65 ≥ 20 ≥ 25
2 1100 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
3 1197 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20
4 3102 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
5 3003 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20


5.Chemical Composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤ 0.25 ≤ 0.40 ≤ 0.05 ≤ 0.05 ≤ 0.05 - ≤ 0.05 ≤ 0.05 ≤ 0.03
2 1100 ≤ 0.95(Fe+Si) 0.05-0.20 ≤ 0.05 - - ≤ 0.10 - -
3 1197 ≤ 0.15 ≤ 0.20 0.40-0.55 0.10-0.20 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05
4 3102 ≤ 0.40 ≤ 0.70 ≤ 0.10 0.05-0.40 - - ≤ 0.30 - ≤ 0.10
5 3003 ≤ 0.15 ≤ 0.15 ≤ 0.01 0.90-1.10 ≤ 0.03 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05


6. Size Tolerance

Width Thickness Wall Thickness Length Lateral Curvature Frontal Curvature Twsiting Dgree
± 0.05mm ± 0.03mm ± 0.05mm ± 0.03mm ≤ L× 0.2% ≤ L× 0.25% ≤ L× 0.15%


7.Our products will be tested in strict standard before delivery, some data for your reference.


No Products' Testing Name Contents and requests
1 Corrosion Resistance Salt spray test: ≥ 750 hours
2 Zn Coating Standards 6/8/10/13± 2g/square meter
3 Flux Cotaing Standards 10-15± 2g/square meter


8.Commercial terms

Minimum Order Quantity: 1 metric tons
Price: negotiation
Payment Terms: T/T or LC
Supply Ability: 1000,000 mt per year
Delivery Time: 15-30 working days after received your down payment
Packaging Details: Standard export packaging

Aluminum battery end plate for car is widely used for car battery:


Our advantage:

1. Since 2006, we have rich experience in this industry in China;
2. Good reputation in aluminum material industry;
3. We have our own development department for new material research;
4. Good experience and cooperation with big client in the world;
5. Design Ability;
6. High performance cost ratio;
7. Fast delivery time for flat aluminum micro channel tube;
8. Good communication skills, and good after sells service, and understandings for customers;

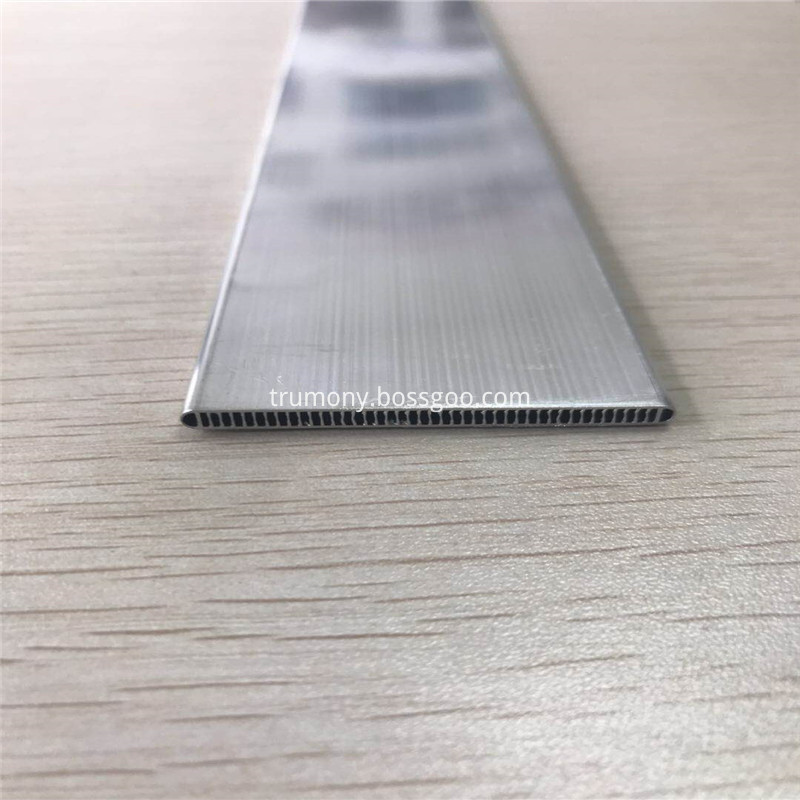

Aluminum Micro Channel Tube4

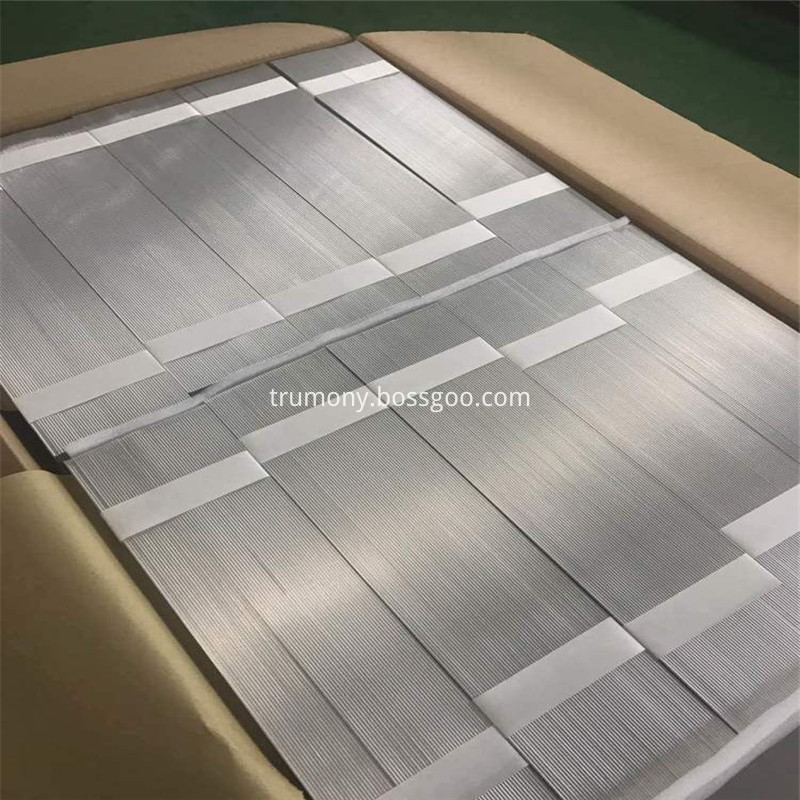

Aluminum Micro Channel Tube9

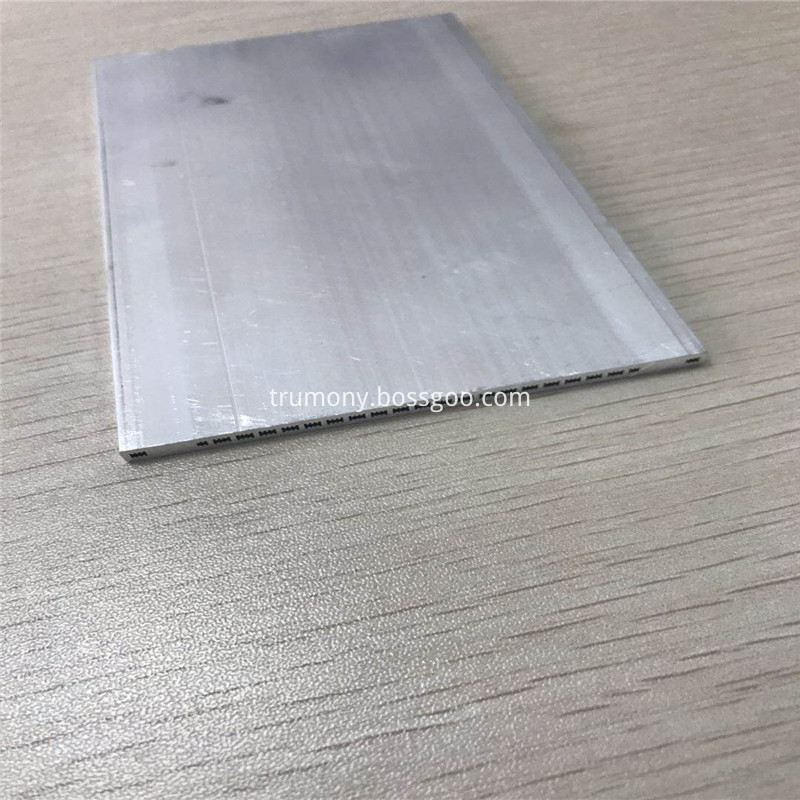

Aluminum Micro Channel Tube13

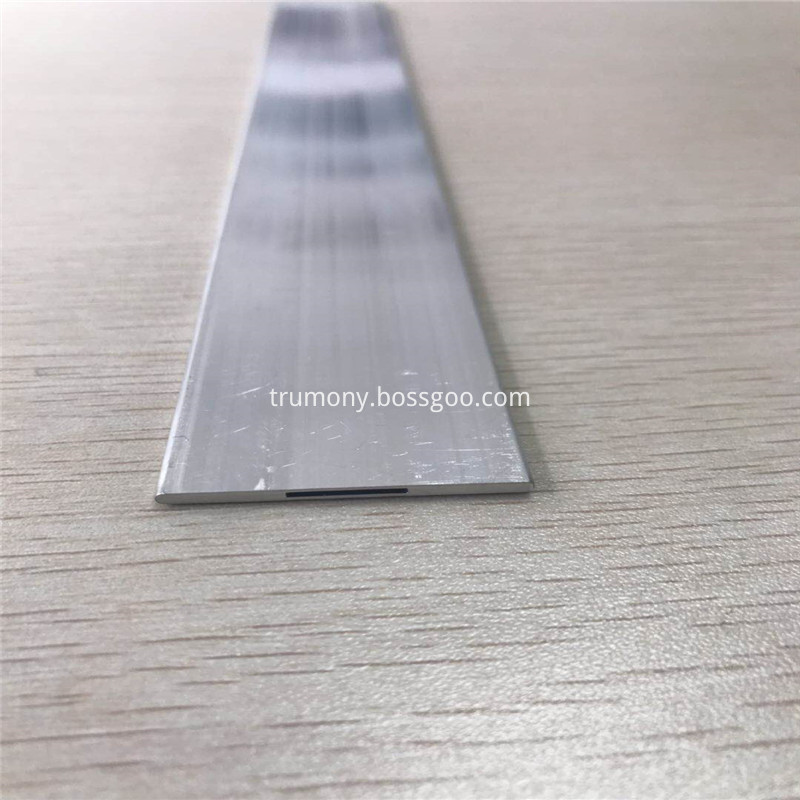

Aluminum Channel Tube0010

Aluminum Channel Tube0001

 FAQ
1, Q: Are you manufacturer of 1050 3003 Extrusion Ultra Width Aluminum Micro Channel Pipe for Heat Exchanger Design Develop?
A: Yes, we are established in 2006. As a manufacturer our customers are welcome to visit our factory.

2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.

4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.

5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.
About sample shippment,you need to pay for the freight,usually freight collect by express.

6. Q: What is the lead time of sample?
A: There are several different situations:
Immediately when you need it if we have it in stock;
5~15days if no stocked sample and the sample structure is not complex;
15~30days if no stocked sample and the sample is with complex structure.
